REF: 55392

Inter_N WC Frame System
No colour 00 No colour
Ref €/u Product/Set Measurements
55392
Inter_N WC Frame System. Support frame for WC with dual flush cistern.
Adjustable flush, full flush between 9 and 5 litres, reduced flush between 4 and 3 litres.
 Components/Installation
5539501
Push-button double flush PL62 white
5539569
Push-button Chromed gloss dual flush PL62
5539570
Push-button Chromed matt dual flush PL62

Features
Inter_N WC Frame System. Support frame for WC with dual flush cistern. Adjustable flush, full flush between 9 and 5 litres, reduced flush between 4 and 3 litres. Installation accessories included. Required minimum depth of 15 cm. Waste elbow Ø 90 mm. / 13 kg. / 24 units pallet Compatible only with push buttons PL62. Allows the installation of sanitaryware with fixations between axes at 18 or 23 cm.

Guarantee
Gala products are guaranteed against any manufacturing defects, from the date of purchase of the product, only if the installation has been carried out in accordance with Gala´s installation instructions and, applying the current legislation on electrical and sanitary appliances, by authorised staff. The guarantee period is of 5 years.

Installation

Certificates
High quality is a constant at Gala in order to guarantee the technical and aesthetic features as well as the performance of our products. Please check our product quality certificates.

Inter_N WC Frame System
Inter_N WC Frame System

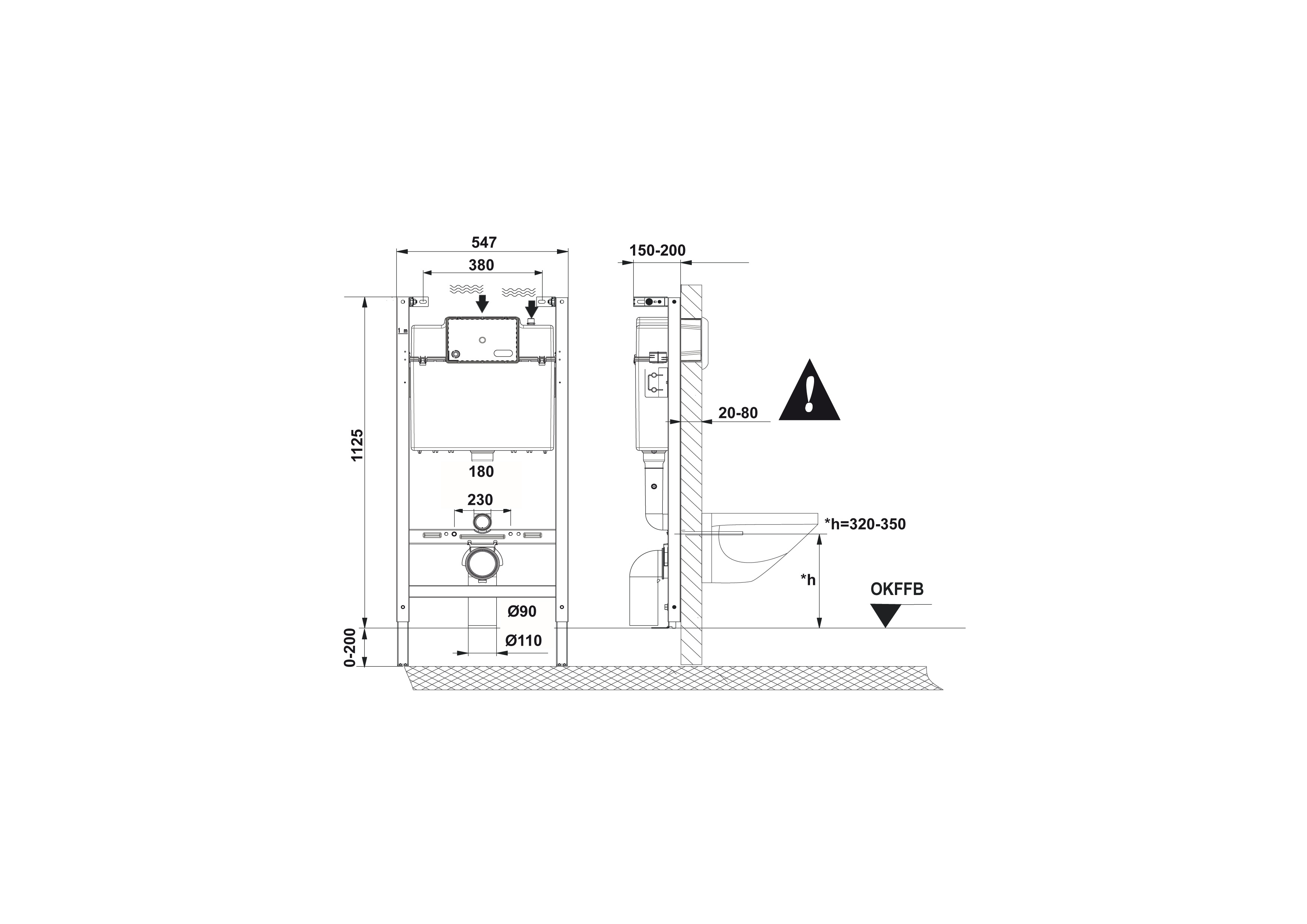

2D

1.07 MBInter_N WC Frame System - Técnico (.AI)
427.37 KBInter_N WC Frame System - Técnico (.DWG)
3.02 MBInter_N WC Frame System - Técnico (.DXF)
275.47 KBInter_N WC Frame System - Técnico (.PDF)
