Basic Tank System
Share:

REF: 55411

Basic Tank System
No colour 00 No colour
Ref €/u Product/Set Measurements
55411
Basic Tank System. Built-in cistern with dual flush mechanism adjustable to 6/3 litres,
4,5/3 litres and 4/2 litres
 Components/Installation
5536501
Dual push-button PL3 White
5536569
Dual push-button PL3 Chrome gloss
5536570
Dual push-button PL3 Chromed Matt
5536600
Vandal resistant push-button PL3 Stainless steel

Features
Basic Tank System. Built-in cistern with dual flush mechanism adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres, pipe and rear spud with inlet connector. / 2,8 kg. / 30 units pallet. Pro and Basic are only compatible with push-button mechanisms (PL3, PL8 y PL9).

Guarantee
Gala products are guaranteed against any manufacturing defects, from the date of purchase of the product, only if the installation has been carried out in accordance with Gala´s installation instructions and, applying the current legislation on electrical and sanitary appliances, by authorised staff. The guarantee period is of 5 years.

Installation

Certificates
High quality is a constant at Gala in order to guarantee the technical and aesthetic features as well as the performance of our products. Please check our product quality certificates.

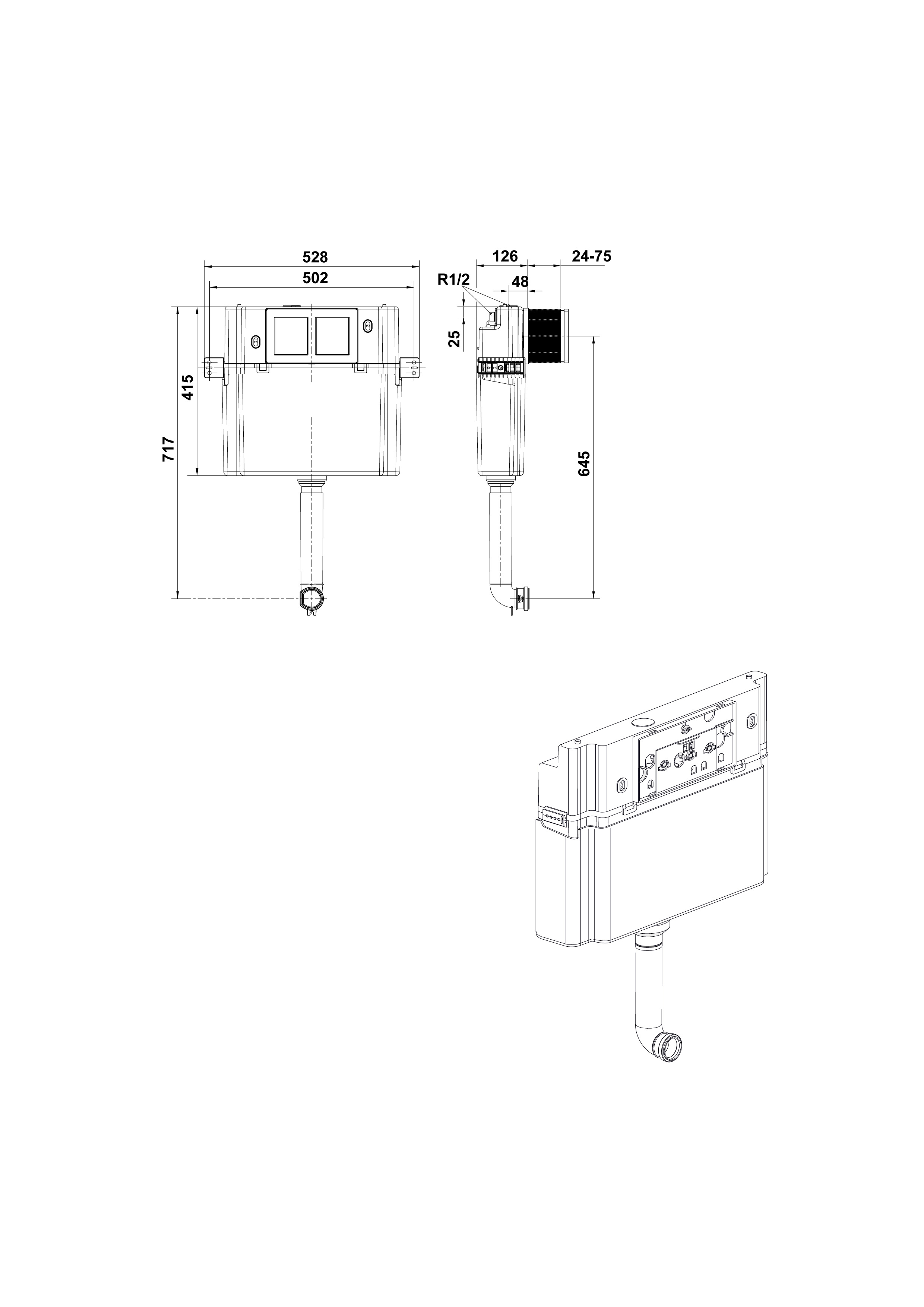

2D

370.07 KBBasic Tank System - Técnico (.AI)
1.19 MBBasic Tank System - Técnico (.DWG)
9.25 MBBasic Tank System - Técnico (.DXF)
386.25 KBBasic Tank System - Técnico (.PDF)
