REF: 5056270

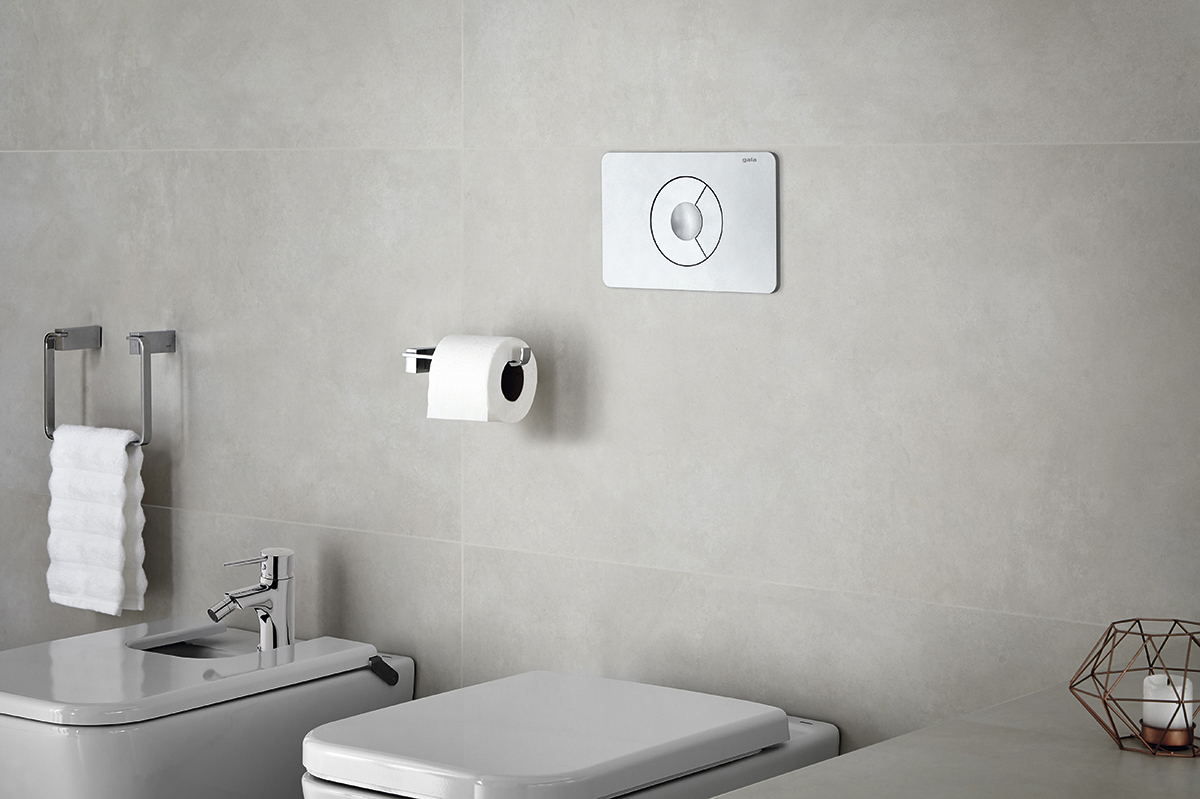

Double flush push-button
70 Mate | Ref | Product/Set | Measurements | |
|---|---|---|---|
| 5056270 | Chromed matt dual flush push-button Eon9 | ||
| Components/Installation | |||
| 55483 | WC Full Frame Eon. Installation system for wall-hung WC in dry walls with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. | ||
| 55480 | WC Full Frame Eon Compact. Installation system for wall-hung WC in dry walls with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. | ||
| 55485 | WC Full Frame Eon Freestanding. Installation system for self-supporting wall-hung WC with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. | ||
| 55484 | WC Full Frame Gala Innova. Installation system for wall-hung WC in dry walls with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. | ||
| 55481 | WC Half Frame Eon Compact. Installation system for wall-hung WC in dry walls with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. | ||
| 55482 | WC Tank Eon Compact. Installation system for floorstanding WC in dry and wet walls with compact dual flush cistern. Adjustable to 6/3 litres, 4,5/3 litres and 4/2 litres. |
Features
Chromed matt dual flush push-button Eon9. Are only compatible with Eon System.
Guarantee
Gala products are guaranteed against any manufacturing defects, from the date of purchase of the product, only if the installation has been carried out in accordance with Gala´s installation instructions and, applying the current legislation on electrical and sanitary appliances, by authorised staff. The guarantee period is of 5 years.
Installation
Certificates
High quality is a constant at Gala in order to guarantee the technical and aesthetic features as well as the performance of our products. Please check our product quality certificates.
Maintenance
For periodical cleaning use a soft cloth and soap and water. Dry the push-button after cleaning. If you use cleaning products such as gels, liquid cleaners or anti-limescale products, always read the manufacturers´ instructions first. After using the products always rinse the push-button with clean water. Do not use abrasive products such as bio-alcohol, bleach, hydrochloric acid, ammonia, acetone or other similar products. Do not use aggressive scourers.

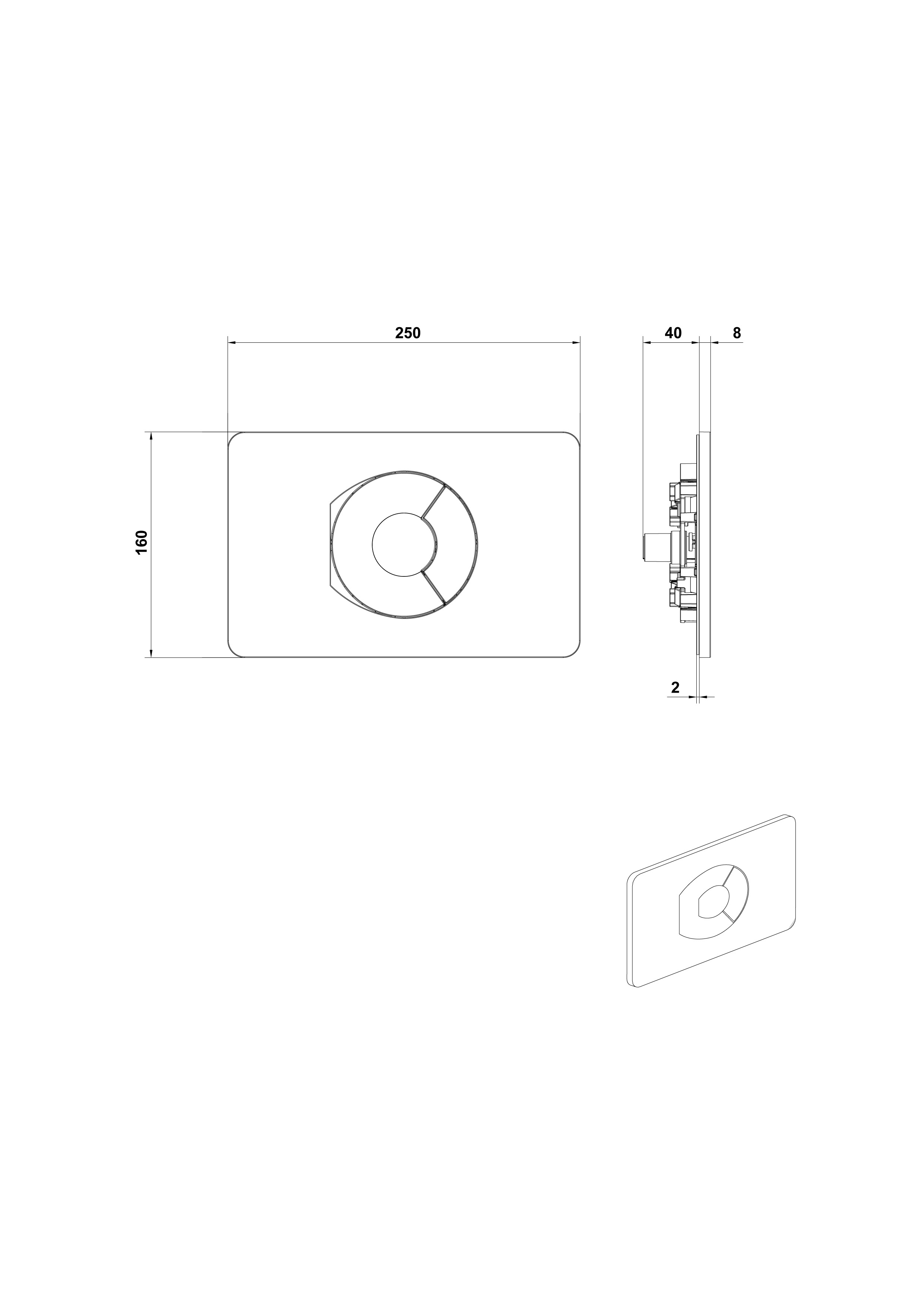

2D | |||
 | 155.21 KB |  | Double flush push-button - Técnico (.AI) |
 | 376.44 KB | | Double flush push-button - Técnico (.DWG) |
 | 2.6 MB | | Double flush push-button - Técnico (.DXF) |
 | 169.33 KB | | Double flush push-button - Técnico (.PDF) |
