SPORT SYSTEM
El sistema SPORT es un recubrimiento para swimming pools, con coronación desbordante, que da óptimas soluciones a las zonas más complejas de piscinas polivalentes e instalaciones deportivas de uso público. Garantizando la máxima seguridad de manera homogénea.
Some advantages of this system:
· Omnidirectional anti-slip, standardised and safer, in comparison to grooved surfaces.
· Easy placement and faster cleaning of the grouting.
· Quick and easy maintenance, due to the design of the surface
Edging systems
SPORT SYSTEM
EXTRUDED TILE
COLOUR RANGE
A
AMr
B
BMr
Pe
PeMr
Be
BeMr
POOL EDGING PIECES
REF. 954
SPORT EDGE
12 x 24.5 x 2.6 cm – 4.7” x 9.6” x 1.0”
R11/C ANTI-SLIP
R11
CLASS C
REF. 414
EXTERNAL CORNER SPORT
12 x 12 x 2.6 cm – 4.7” x 4.7” x 1.0”
R11/C ANTI-SLIP
R11
CLASS C
REF. 314
ÁNGULO INT. SPORT
12 x 12 cm – 4.7” x 4.7”
R11/C ANTI-SLIP
R11
CLASS C

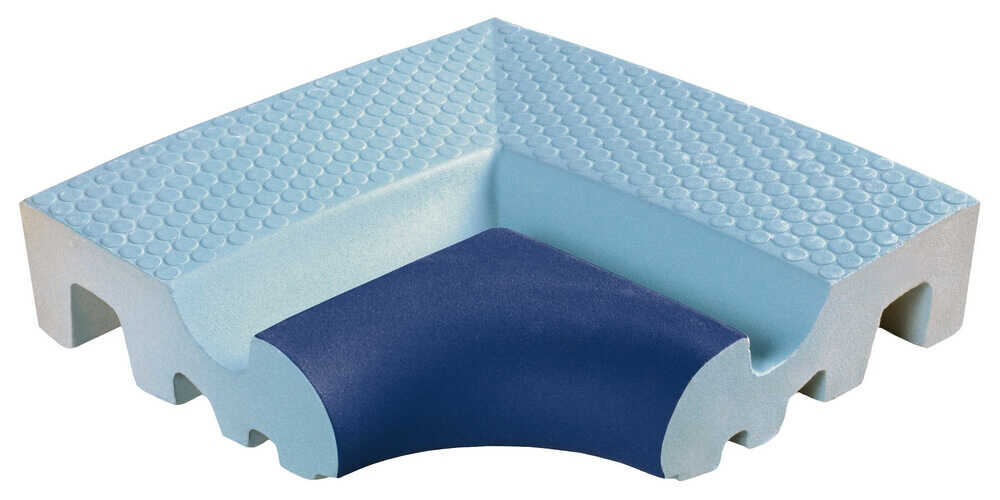

REF. 214
SPORT CORNER EDGE
17 x 17 cm-6.7” x 6.7” r=6 cm
R11/C ANTI-SLIP
R11
CLASS C
REF. 919
SPORT GRATING SUPPORT
13.5 × 24.5 × 3.5 cm-5.3” x 9.6” x 1.4”
R11/C ANTI-SLIP
R11
CLASS C
FINLANDES SYSTEM
The FINLANDES system is the most commonly used system for overflowing swimming pools in public use facilities.
Multi-purpose swimming pools, community swimming pools and sports facilities for public use. This system offers a series of advantages:
· Excellent visibility.
· Alleviation of waves in competition sport swimming pools.
· Sheet of water with greater surface than the pool.
Edging systems
FINLANDES
EXTRUDED TILE · EXTRUDED KLINKER
COLOUR RANGE
A
AMr
B
BMr
Pe
PeMr
Be
BeMr
POOL EDGING PIECES

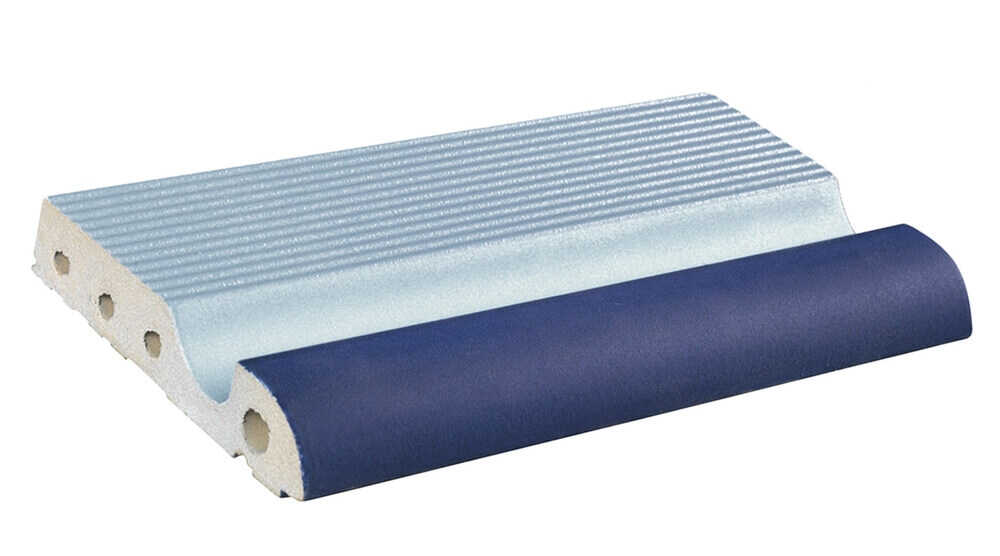

REF. 953
FINLANDES EDGE
12 x 24.5 x 2.6 cm – 4.7” x 9.6” x 1.0”
R11/C ANTI-SLIP
R12
CLASS C
REF. 413
FINLANDES EXTERNAL CORNER
12 x 12 x 2.6 cm – 4.7” x 4.7” x 1.0”
R11/C ANTI-SLIP
R12
CLASS C

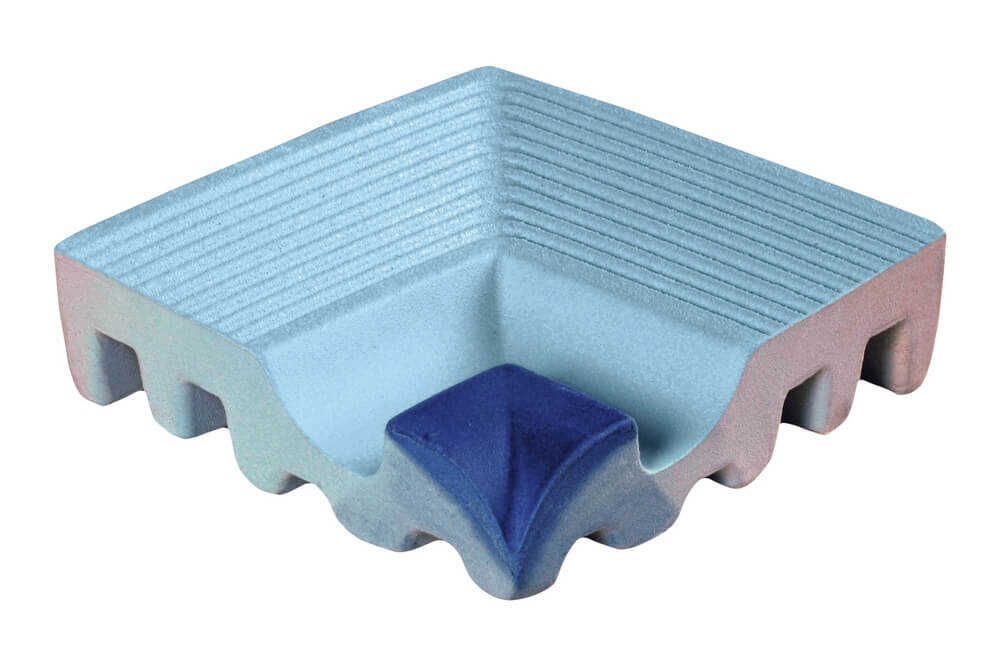

REF. 313
FINLANDES INTERNAL CORNER
12 x 12 cm – 4.7” x 4.7”
R11/C ANTI-SLIP
R12
CLASS C
REF. 213
FINLANDES CORNER EDGE
17 x 17 cm-6.7” x 6.7” r=6 cm
R11/C ANTI-SLIP
R12
CLASS C
REF. 918
GROOVED GRATING SUPPORT
13.5 × 24.5 × 3.5 cm-5.3” x 9.6” x 1.4”
R11/C ANTI-SLIP
R12
CLASS C
FORMAT | Pieces/box | Kg/box | Boxes/pallet | Kg/pallet |
|---|---|---|---|---|
Ref. 954 12 x 24.5 x 2.6 cm CLASS 3 Sport Edge | 12 4 pcs/ml | 13.8 | 63 | 870 |
Ref. 214 17 x 17 cm CLASS 3 Sport Edge Corner | 4 | 6 | - | - |
Ref. 314 12 x 12 cm CLASS 3 Sport Internal Corner | 1 | 23.13 | 32 | 740.16 |
Ref. 414 12 x 12 cm CLASS 3 Sport External corner | 4 | 2.8 | - | - |
Ref. 919 13.5 x 24.5 x 3.5 cm CLASS 3 Sport Grating Support | 8 4 pcs/ml | 9.5 | 96 | 912 |
Ref. 930 15 x 24.5 x 3.5 cm CLASS 3 Gutter | 8 4 pcs/ml | 11.12 | 69 | 768 |
Ref. 930 15 x 24.5 x 3.5 cm CLASS 3 Bottom Drain Gutter | 8 4 pcs/ml | 11 | 69 | 768 |
Ref. 104 12 x 24.5 cm 9 mm CLASS 3 Sport Base | 35 32 pcs/m2 | 19.25 | 77 | 1482 |
Ref. 124* 24.5 x 24.5 cm CLASS 3 9 mm Sport Base | 16 16 pcs/m2 | 19.79 | 69 | 1365 |
Ref. 953 12 x 24.5 x 2.6 cm CLASS 3 Finlandes Edge | 12 4 pcs/ml | 13.8 | 63 | 870 |
Ref. 213 17 x 17 cm CLASS 3 Finlandes Corner Edge | 4 | 6 | - | - |
Ref. 313 12 x 12 cm CLASS 3 Finlandes internal corner | 4 | 3.7 | - | - |
Ref. 413 12 x 12 cm CLASS 3 Finlandes external corner | 4 | 2.8 | - | - |
Ref. 918 13.5 x 24.5 x 3.5 cm CLASS 3 Grooved Grating Support | 8 4 pcs/ml | 9.5 | 96 | 912 |
Ref. 230 24.5 x 24.5 x 6.5 cm CLASS 1 Gutter | 4 4 pcs/ml | 10.28 | 36 | 370 |
Ref. 230 24.5 x 24.5 x 6.5 cm Ø 50 - 65 mm CLASS 1 Bottom Drain Gutter | 4 4 pcs/ml | 10.28 | 36 | 370 |
Ref. 103 12 x 24.5 cm CLASS 3 9 mm Grooved Base | 35 32 pcs/m2 | 19.25 | 77 | 1482 |
Ref. 109 12 x 24.5 cm CLASS 3 9 mm Soft Anti-Slip Base | 35 32 pcs/m2 | 19.25 | 77 | 1482 |
Ref. 105 12 x 24.5 cm CLASS 3 9 mm Base | 35 4 pcs/ml | 19.25 | 77 | 1482 |
Ref. 205 17.5 x 17.5 cm 9 mm CLASS 3 Inner Corner | 4 | 3.2 | - | - |
Ref. 405 12 x 12 cm CLASS 3 9 mm Outer Corner Base | 4 | 3.92 | - | - |
Ref. 505 12 x 12 cm CLASS 3 9 mm. Outer Corner External Cove Romo | 4 | 3.92 | - | - |
Ref. 111 12 x 24.5 x 3 cm CLASS 3 Angular Piece | 16 4 pcs/ml | 13.92 | 78 | 1086 |
Ref. 114 Outer Corner CLASS 3 12 x 12 x 3 cm Angular Piece Romo | 4 | 1.98 | - | - |
Ref. 115 Outer Corner CLASS 3 12 x 12 x 3 cm Angular external cove | 4 | 2 | - | - |
Ref. 101 12 x 24.5 cm CLASS 1 9 mm Base | 35 32 pcs/m2 | 19.25 | 77 | 1482 |
Ref. 931 CLASS 1 glazed 12 x 24.5 x 3.5 cm sanitary skirting board with internal coves | 16 4 pcs/ml | 12.1 | 57 | 684 |
Ref. 941 12 x 4.75 cm r=3 cm CLASS 1 Internal corner | 15 | 0.55 | - | - |
Ref. 942 12 x 4.75 x 4.75 cm CLASS 1 r= 3 cm External corner | 10 | 0.82 | - | - |
Ref. 222 CLASS 1 24.5 x 4 cm r= 3 cm Internal cove | 50 | 7.6 | 114 | 870 |
Ref. 322 24.5 x 3 cm CLASS 1 External Cove | 64 4 pcs/ml | 8.45 | 114 | 970 |
Ref. 232 4 x 4 cm r= 3 cm CLASS 1 Internal cap | 4 | 0.4 | 72 | 30 |
Ref. 332 3 x 3 cm CLASS 1 External Cap | 4 | 0.4 | 72 | 30 |
Ref. 221 24.5 x 8 cm CLASS 1 Internal Cove | 20 4 pcs/ml | 7.6 | 128 | 958 |
Ref. 321 CLASS 1 24.5 x 8 cm External Cove | 20 4 pcs/ml | 7 | 114 | 800 |
Ref. 341 CLASS 1 12 x 8 x 8 cm external corner cap | 4 | 1.3 | - | - |
Ref. 342 CLASS 1 12 x 8 x 8 cm Internal Corner Cap | 4 | 1.3 | - | - |
Ref. 231 8 x 8 cm CLASs 1 Corner Cove Base | 4 | 0.6 | - | - |
Ref. 331 8 x 8 cm CLASS 1 External Cap | 4 | 0.6 | - | - |
