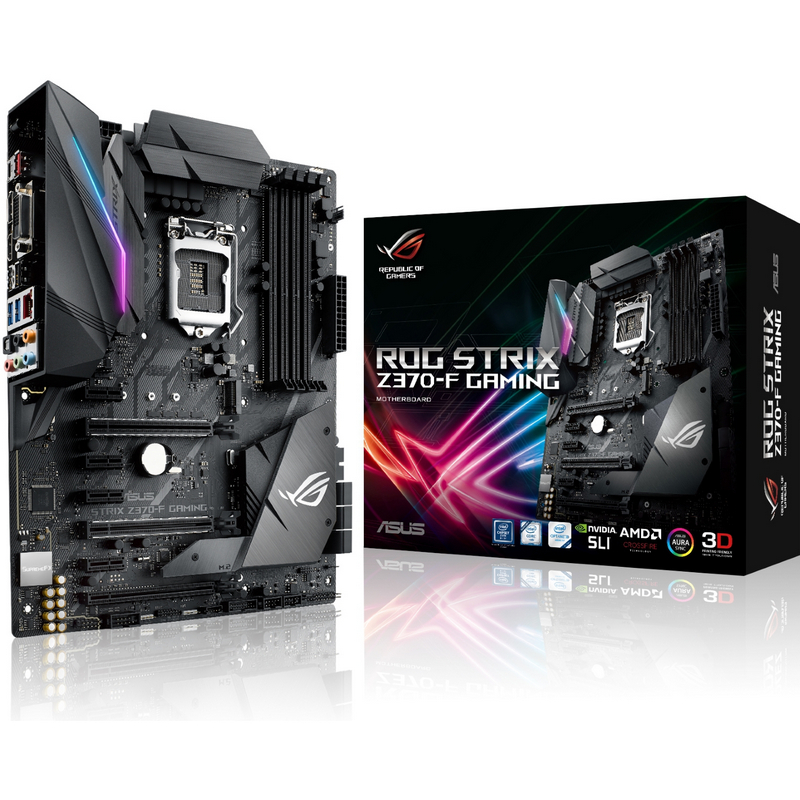

Asus Z370-F Gaming

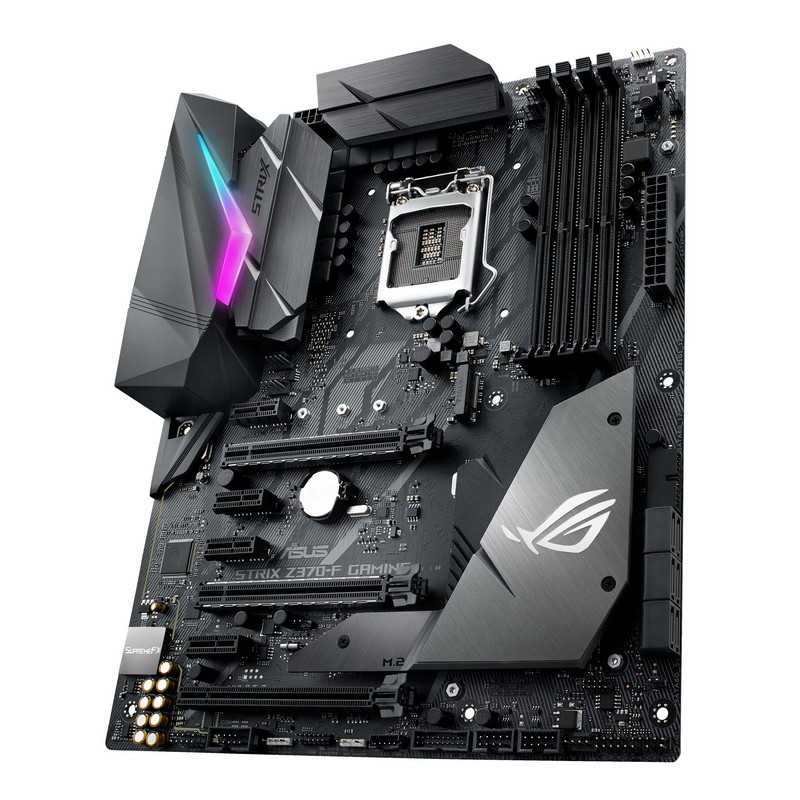

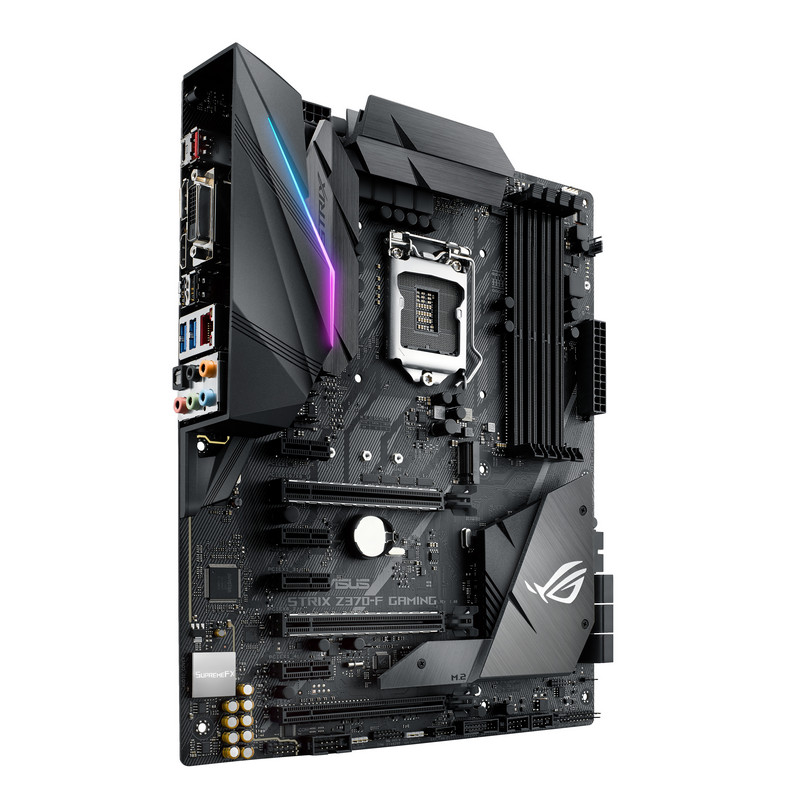

Te presentamos la Asus Z370-F Gaming una placa base con socket Intel 1151 y chipset Z370. Placa base de gaming ATX Intel Z370 con iluminación Aura Sync RGB LED, soporte DDR4 4000 MHz, dos M.2, SATA 6 Gbps y USB 3.1 Gen. 2
| CPU | Intel® Socket 1151 for 8th Generation Core™ Processors |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0* | |
| * The support of these features depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list. | |
| Chipset | Intel® Z370 Chipset |
| Memory | 4 x DIMM, max. 64GB DDR4 4000(OC)*/3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666/2400/2133 MHz non-ECC, un-buffered memory |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP)* | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details. | |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) |
| 1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode) | |
| 4 x PCIe 3.0/2.0 x1 slot | |
| * For 2 Intel® SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX8_2 slot, enable this card under BIOS settings. | |
| ** For 3 Intel® SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16/x8_1 slot, enable this card under BIOS settings. | |
| VGA | Integrated Graphics Processor- Intel® HD Graphics support |
| Multi-VGA output support: DisplayPort/HDMI/DVI-D ports | |
| Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz | |
| Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz | |
| Supports DVI-D with max. resolution 1920 x 1200@60Hz | |
| Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™ | |
| Supports up to 3 displays simultaneously | |
| Maximum shared memory of 1024MB | |
| * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ Technology |
| Supports AMD® 3-Way CrossFireX™ Technology | |
| Storage | Intel® Z370 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support |
| - 6 x SATA 6Gb/s ports | |
| - 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x 4 modes)* | |
| - 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)** | |
| - Ready for Intel® Optane Memory*** | |
| * The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. | |
| ** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices. | |
| *** Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| **** These functions will work depending on the CPU installed. | |
| LAN | Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Anti-surge LANGuard | |
| ROG GameFirst technology | |
| Audio | ROG SupremeFX S1220A 8-Channel High Definition Audio CODEC |
| - Supports up to 32-Bit/192kHz playback* | |
| - Impedance sense for front and rear headphone outputs | |
| - High quality 120dB SNR stereo playback output and 113dB SNR recording input | |
| - SupremeFX Shielding Technology | |
| - Dual Headphone Amplifiers | |
| - Jack-detection, Multi-streaming, and Front Panel Jack-retasking | |
| - Optical S/PDIF out port at back panel | |
| Audio Features: | |
| - Sonic Radar III | |
| - Sonic Studio III + Sonic Studio Link | |
| *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio | |
| USB | Intel® Z370 Chipset- |
| - 6 x USB 3.1 Gen1 ports ( 2 ports at back panel [blue], 4 ports at mid-board) | |
| - 6 x USB 2.0 ports ( 2 ports at back panel, 4 ports at mid-board) | |
| ASMedia® USB 3.1 Gen controller* | |
| - 2 x USB 3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) | |
| * Supports 3A power output | |
| ROG Exclusive Features | ROG RAMCache II |
| ROG GameFirst IV | |
| ROG CPU-Z | |
| ROG Overwolf | |
| ROG Clonedrive | |
| Special Features | Performance Optimization |
| 5-Way Optimization | |
| - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages. | |
| Digi+VRM | |
| EPU | |
| - EPU | |
| TPU | |
| - Auto Tuning, TPU, GPU Boost | |
| Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control | |
| Turbo APP featuring system performance tuning, network piority, and audio scene configuration for selected applications | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| ASUS Q-Design | |
| - Q-Shield | |
| - Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - Q-Slot | |
| - Q-DIMM | |
| Gamer´s Guardian | |
| - SafeSlot | |
| - DIGI+ VRM | |
| - DRAM Overcurrent Protection | |
| - ESD Guards on LAN, Audio and USB ports | |
| - Highly Durable Components | |
| - Stainless Steel Back I/O | |
| ASUS Exclusive Features | |
| - AURA Lighting Control | |
| - 3D Printing Friendly design | |
| - AI Suite 3 | |
| - AI Charger | |

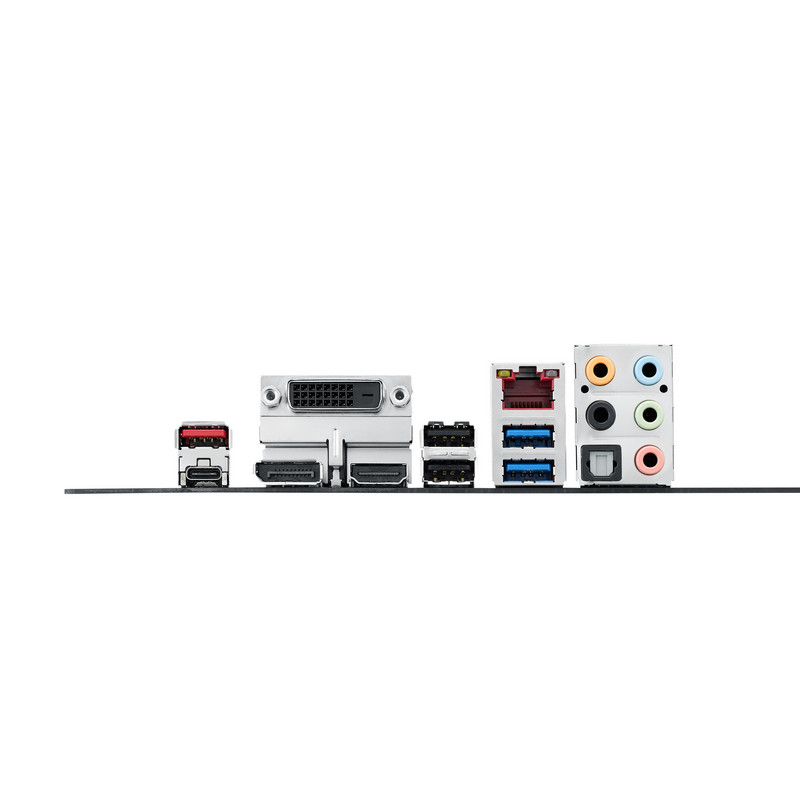

| Back I/O Ports | 2 x USB3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) |
| 1 x DVI port | |
| 1 x HDMI port | |
| 1 x DP port | |
| 2 x USB 3.1 Gen1 ports [blue] | |
| 2 x USB 2.0 ports | |
| 1 x Anti-surge LAN (RJ45) port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out | |
| Internal I/O Ports | 2 x USB 3.1 Gen1 connectors support additional 4 x USB 3.1 Gen1 ports |
| 2 x USB 2.0 connectors support additional 4 x USB 2.0 ports | |
| 6 x SATA 6Gb/s connectors | |
| 1 x 4-Pin M.2_FAN connector | |
| 1 x 4-Pin AIO_PUMP fan connector | |
| 1 x 4-Pin CPU fan connector | |
| 1 x 4-Pin CPU_OPT fan connector | |
| 2 x 4-Pin Chassis fan connectors | |
| 1 x 5-Pin Extension fan connector | |
| 1 x 24-pin EATX power connector | |
| 1 x 8-pin EATX 12V power connector | |
| 1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Supports PCIE and SATA modes) | |
| 1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Supports PCIE mode only) | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x COM connector | |
| 2 x RGB Headers | |
| 1 x Addressable Header | |
| 1 x TPM connector | |
| 1 x System panel connector | |
| 1 x Thermal sensor connector | |
| 1 x CPU_OV | |
| 1 x Clear CMOS jumper (2-pin) | |
| Accessories | User guide |
| Support DVD | |
| I/O Shield | |
| 4 x SATA 6Gb/s cables | |
| 1 x SLI HB BRIDGE (2-WAY-M) | |
| 1 x RGB LED extension cable | |
| 1 x Addressable LED extension cable | |
| 1 x 3D Printing Mount | |
| 1 x M.2 Screw Package | |
| 1 x ROG STRIX Door Hanger | |
| 1 x Thermal Sensor Cable | |
| 1 x CPU Installation tool | |
| 1 x CPU Fan holder | |
| 1 x Pack of cable ties | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM2.0, DMI3.0, WOL by PME, PXE |
| Support DVD | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System Support | Windows® 10 64-bit |
| Form Factor | ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm) |
