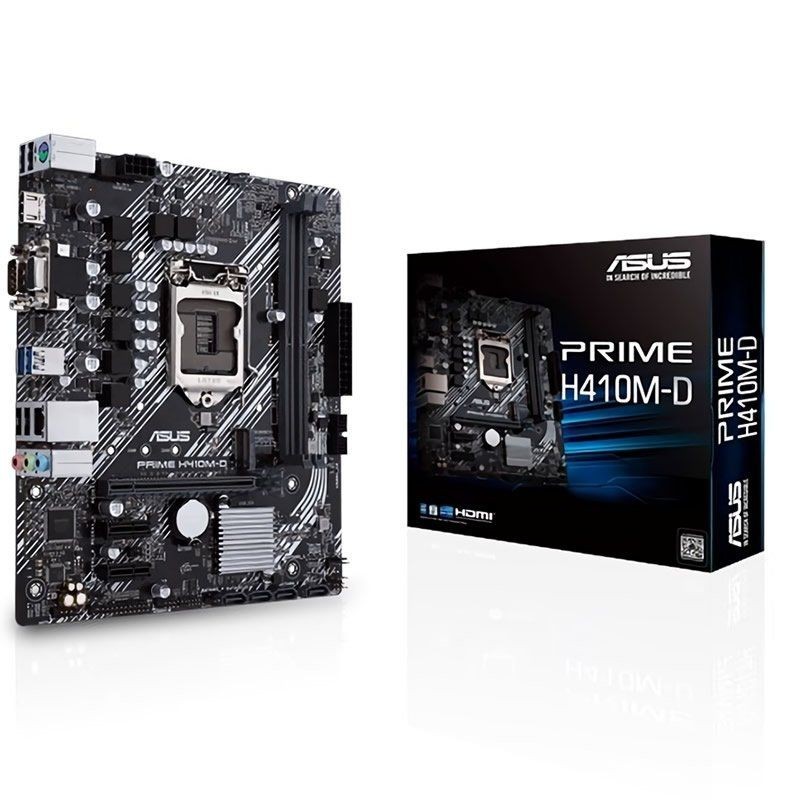

PLACA BASE ASUS PRIME H410M D INTEL CORE 10TH GEN SOCKET LGA 1200

Name: PLACA BASE ASUS PRIME H410M D INTEL CORE 10TH GEN SOCKET LGA 1200
Brand: ASUS
SKU: 90MB13U0-M0EAY0
Price: 76.81 EUR
Availability: InStock

Marca: ASUS - Referencia: 90MB13U0-M0EAY0

Placa base asus prime h410md para intel core 10th gen socket lga 1200 chipset h410 2*dimm ddr4 hdmi/vga matx

Financiación: hasta en 36 meses (calcula tu cuota)

Plan renove activo en el producto

76,81 €

0 artículos en stock.

Cantidad

*Envío gratis en Peninsula y Baleares a partir de 30€ en productos.

**Los precios incluyen IVA.

Descripción
Detalles del producto
Opiniones

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™., Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H410
Memoria
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™.i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
Integrated Graphics Processor *
1 x D-Sub
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Slots de expansión
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1
Almacenamiento
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA &. PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)
Redes
Realtek® RTL8111H
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
LED-illuminated design
Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors
USB
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Características especiales
ASUS 5X PROTECTION III
ASUS DIGI+ VRM
ASUS LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot Core
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-Slot
ASUS Thermal Solution
.Aluminum heatsink design
Puertos traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
Conectores internos
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA &. PCIE 3.0 X2 mode)
1 x LPT header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Sistema Operativo
Windows 10 64Bits
Formato
Micro ATX: 22.6 x 20.1 cm
