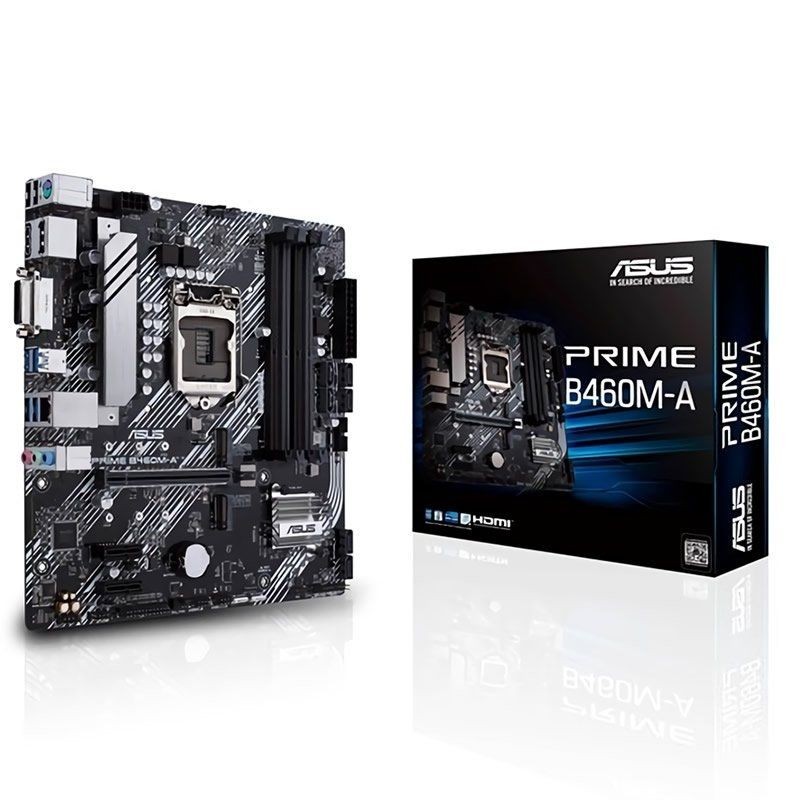

PLACA BASE ASUS PRIME B460M A INTEL CORE 10TH GEN SOCKET LGA 1200

Name: PLACA BASE ASUS PRIME B460M A INTEL CORE 10TH GEN SOCKET LGA 1200
Brand: ASUS
SKU: 90MB13E0-M0EAY0
Price: 100.77 EUR
Availability: InStock

Marca: ASUS - Referencia: 90MB13E0-M0EAY0

Placa base asus prime b460ma para intel core 10th gen socket lga 1200 chipset b4600 4*dimm ddr4

Financiación: hasta en 36 meses (calcula tu cuota)

Plan renove activo en el producto

100,77 €

¡En stock! Envío gratis en 24 / 48h

15 artículos en stock.

Cantidad

*Envío gratis en Peninsula y Baleares a partir de 30€ en productos.

**Los precios incluyen IVA.

Descripción
Detalles del producto
Opiniones

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™., Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B460
Memoria
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™.i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).&nbsp.
Gráficos
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Slots de expansión
Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
Almacenamiento
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA &amp. PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™. Memory Ready
Redes
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
Características especiales
ASUS 5X PROTECTION III
ASUS DIGI+ VRM
ASUS LANGuard
ASUS Overvoltage Protection
ASUS Safeslot
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Sync
Standard RGB header(s)
Puertos traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Conectores internos
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
Sistema Operativo
Windows 10 64Bits
Formato
Micro ATX: 24.4 x 23.4 cm
