SERIE VENTO CORNER SHOWER SCREEN

Home TODOS LOS PRODUCTOS SCREENS SERIE VENTO Enclosures Stock

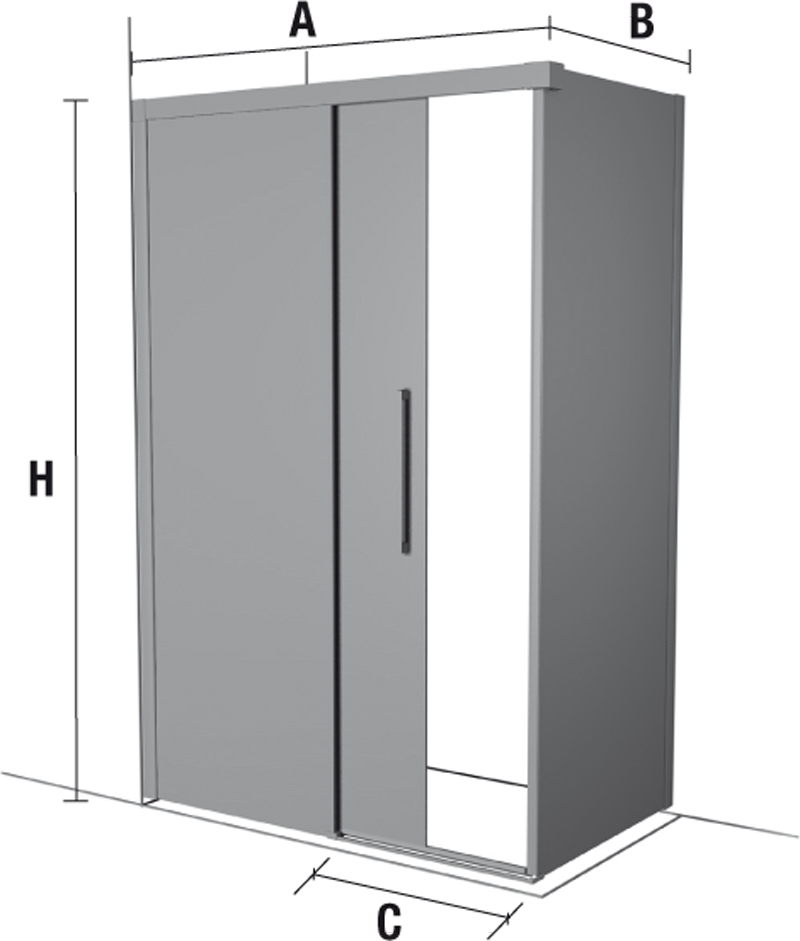

SET-UP EXAMPLE FRONT SHOWER GLASS ENCLOSURE WITH ONE DOOR AND ONE FIXED SECTION PLUS A FIXED SIDE

Place cursor over the image to enlarge it

Transparent tempered glass Standard EN- 12150 of 6 mm on door and fixed section.
Expansion 25 mm on front door plus fixed section and 25 mm on fixed side.
For option with screen prints (Road, Maxi, Supra, Nova and Blanca) 55% increase in price in transparent glass.
Aluminium profile with silver gloss finish and chrome handles.
Silver gloss safety profile at shower floor.
Reversible in transparent glass. Indicate which side with screen print.
Height adjustable nylon upper bearing guiding (6 mm).

Choose your products and set your budget

CORNER + FIXED GLASS SECTION - silver gloss - shower front enclosure with one door and one fixed section plus fixed side - glass

Tray	Measurements (A)	Measurements (B)	Height (H)	COD.	€
900 x 700	*855 - 880	665 - 690	1950	16843	To consult
1000 x 700	955 - 980	665 - 690	1950	16844	To consult
	1055 - 1080	665 - 690	1950	16845	To consult
1200 x 700	1155 - 1180	665 - 690	1950	16846	To consult
	1255 - 1280	665 - 690	1950	16847	To consult
1400 x 700	1355 -1380	665 - 690	1950	16848	To consult
	1455 - 1480	665 - 690	1950	16849	To consult
1600 x 700	1555 - 1580	665 - 690	1950	16850	To consult
	*855 - 880	765 - 790	1950	16851	To consult
1000 x 800	955 - 980	765 - 790	1950	16852	To consult
	1055 - 1080	765 - 790	1950	16853	To consult
1200 x 800	1155 - 1180	765 - 790	1950	16854	To consult
	1255 - 1280	765 - 790	1950	16855	To consult
1400 x 800	1355 -1380	765 - 790	1950	16856	To consult
	1455 - 1480	765 - 790	1950	16857	To consult
1600 x 800	1555 - 1580	765 - 790	1950	16858	To consult
900 x 900	*855 - 880	865 - 890	1950	16859	To consult
1000 x 900	955 - 980	865 - 890	1950	16860	To consult
	1055 - 1080	865 - 890	1950	16861	To consult
1200 x 900	1155 - 1180	865 - 890	1950	16862	To consult
	1255 - 1280	865 - 890	1950	16863	To consult
1400 x 900	1355 -1380	865 - 890	1950	16864	To consult
	1455 - 1480	865 - 890	1950	16865	To consult
1600 x 900	1555 - 1580	865 - 890	1950	16866	To consult

For special measurements 25% increase over the lower measurement.
FRONT: Minimum width: 900 mm, Maximum width: 1800 mm / Minimum height: 1400 mm, Maximum height: 1950 mm
SIDE: Minimum width: 200 mm, Maximum width: 900 mm / Minimum height: 1400 mm, Maximum height: 1950 mm [[I]] *Reduced access <400mm
